OVO Top up / Disbursement SNAP Integration

Integration Scope

OVO Disbursement / Top up can be implemented on:

• Online platform:
  • Merchant Website
  • Merchant App
• Offline platform:
  • POS Machine
  • Vending Machine
  • And other physical payment platforms

Integration

Feature

Product Description

Top Up Inventory (TUI) is a capability for partners to be able to top up OVO cash from merchant own channels.

Features	Status	Remarks
Generate AccessToken (B2B) for execute OVO Cash disbursement / top up	✓
OVO Cash Disbursement / Top up	✓
Deposit Control	✓	The API can read merchant’s remaining deposit, so it will reject a top up request when merchant deposit is below the top up amount.
Inquiry Customer Exist	✓
Check transaction status	✓

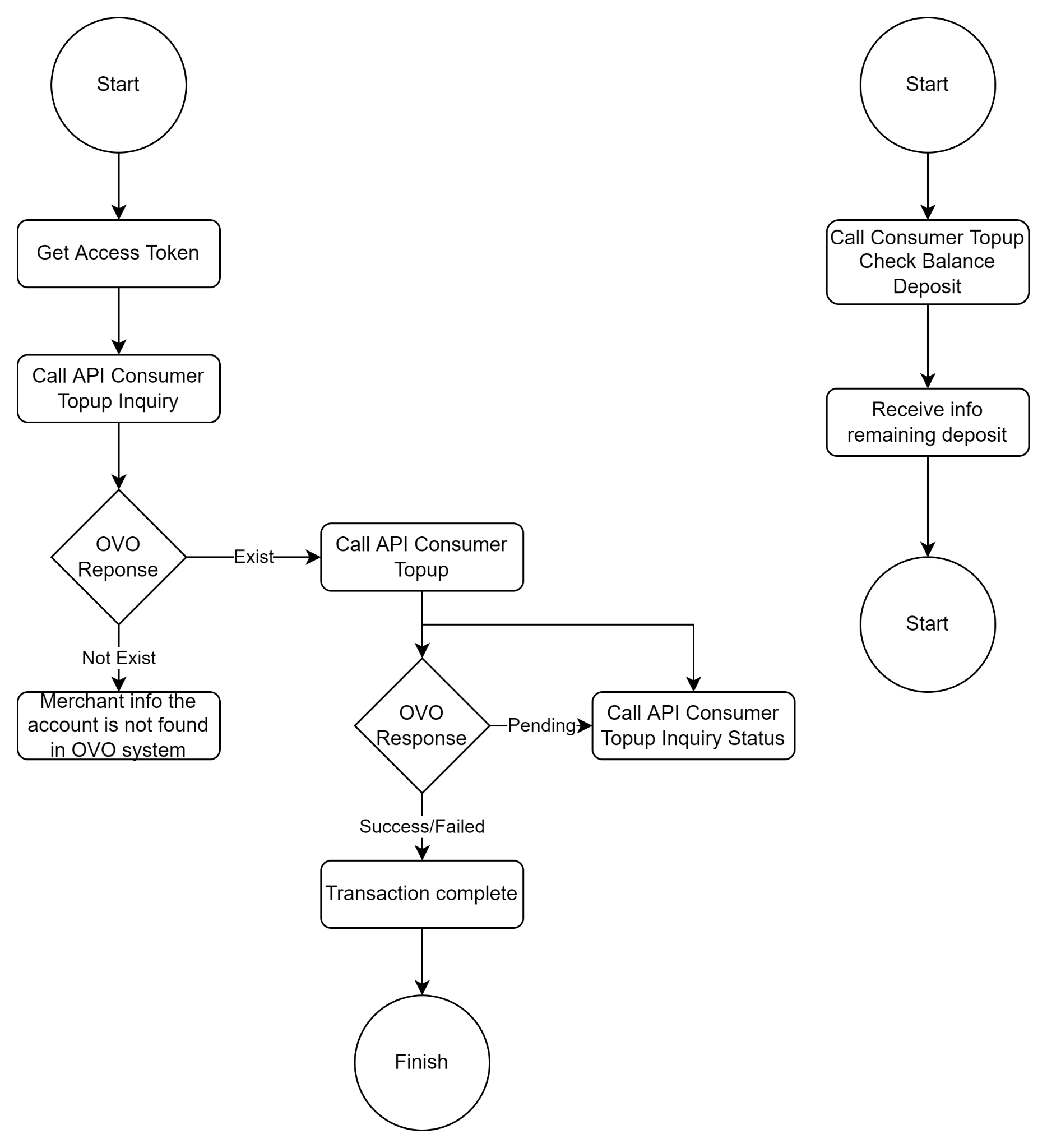

Suggested Technical Flow

Happy path flow UI for Top Up

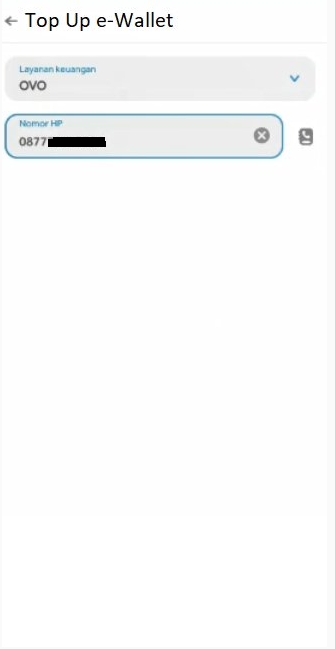

Partner E-Wallet Menu
Option to top up OVO Cash and input phone number format must 08xxx

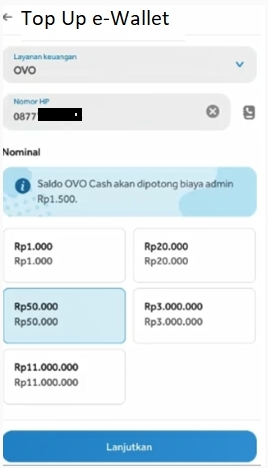

Partner OVO Top Up Menu
Choose amount Top Up, fee will be deducted

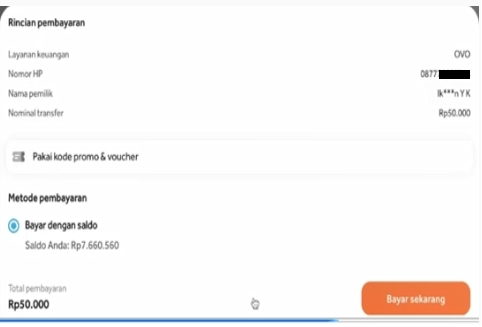

Checkout Page
Reconfirm for Top Up amount and to destination OVO account

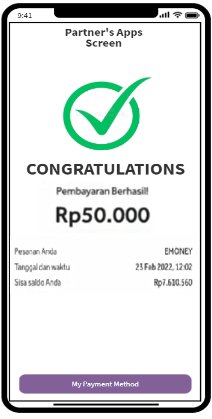

Success Top Up
Success top up page with details Top up

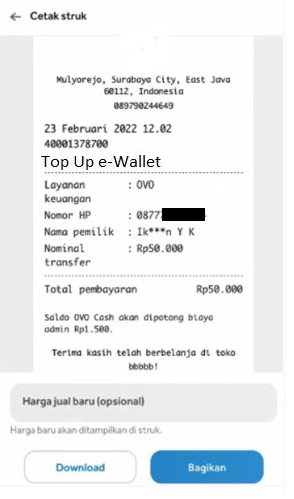

Receipt
Merchant can create a receipt for users

Happy path flow UI for Disbursement (1)

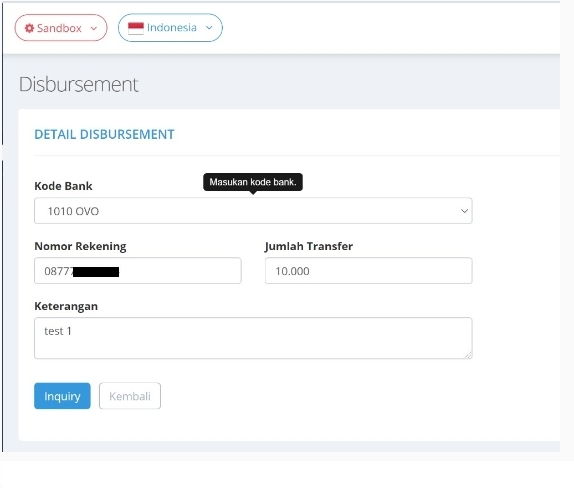

Partner Disbursement Page
Disburse page details and input OVO phone number format must 08xxx and amount of disbursement

Inquiry Phone number page
Result of inquiry OVO Phone number partner will getting OVO Account name

Happy path flow UI for Disbursement (2)

Partner Disbursement Page
Disburse page details and input OVO phone number format must 08xxx and amount of disbursement

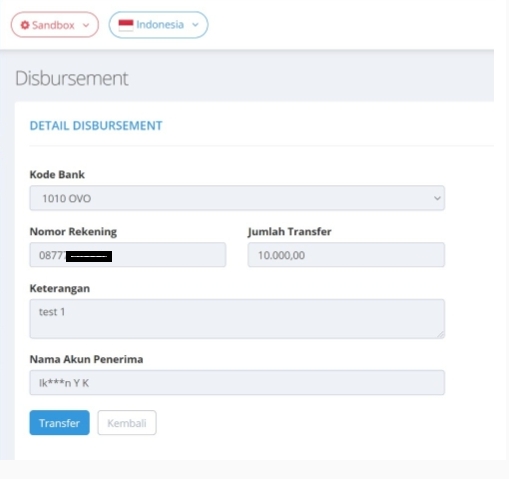

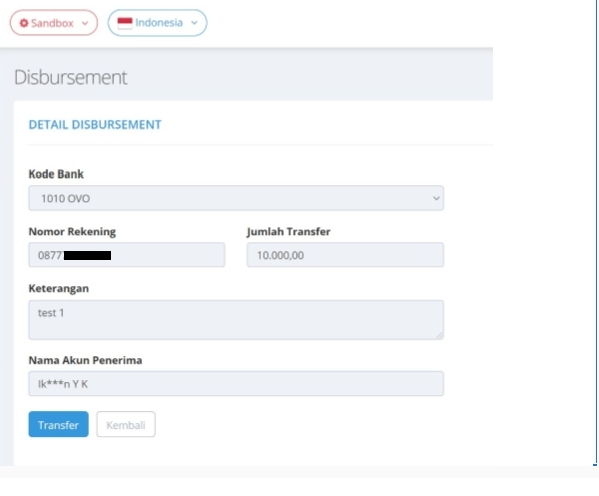

Inquiry Phone number page
Result of inquiry OVO Phone number partner will getting OVO Account name

Unhappy path flow UI for Disbursement

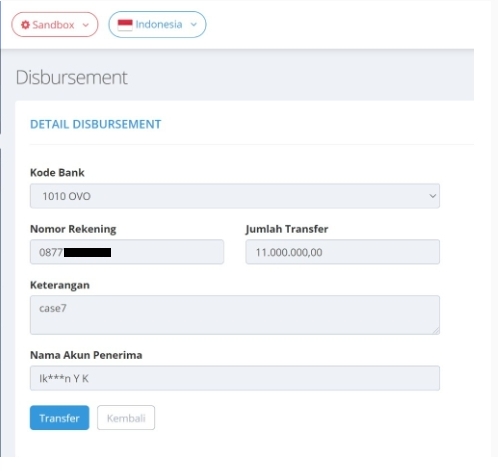

Inquiry Phone number page
Disburse above limit 10 mio and execute to disburse

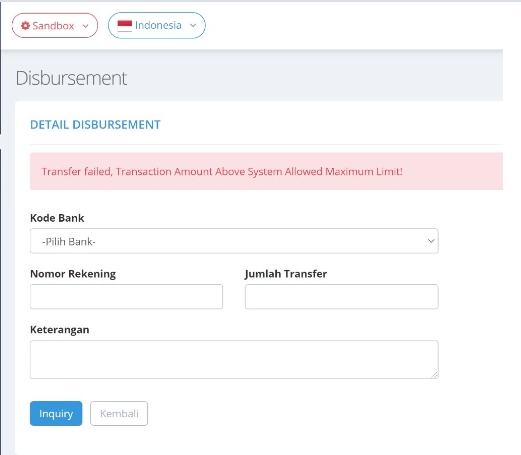

Failed to Disburse
Partner show the specific error message

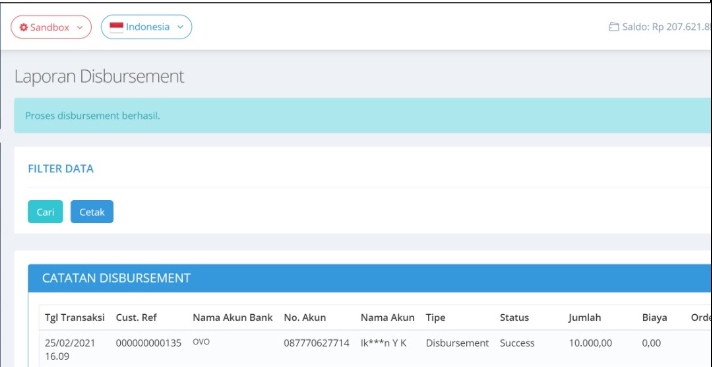

Transaction Report

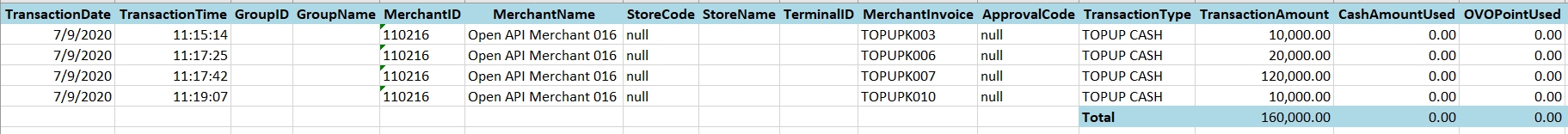

Sample of Transaction Report

• For reconciliation using var “partnerReferenceNo”, in settlement report file var “partnerReferenceNo” auto generate to the MerchantInvoice column.
• The transaction will send daily D+1 (in workdays), the transactions will correspond to a reduction in the deposit

Issue Handling

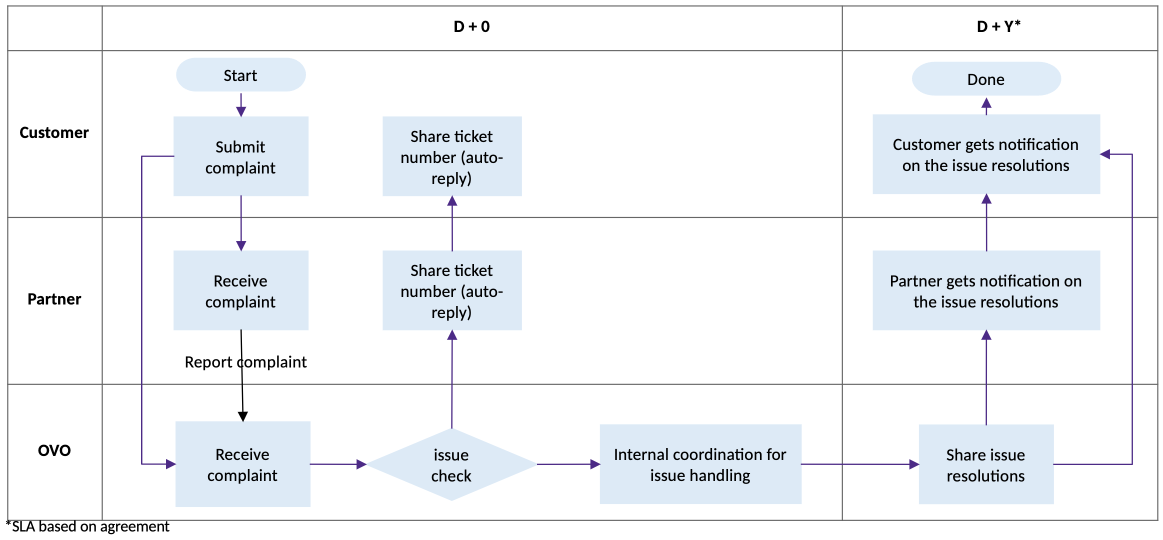

Issue Handling Flow

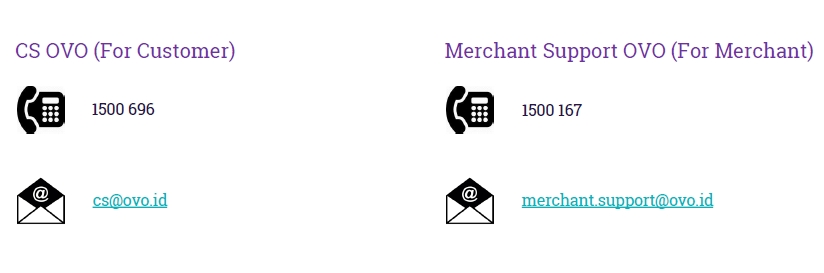

Contact of OVO Merchant Support

Integration Procedure

Process of Integration

Merchant Start Development/Integration	Merchant Go Live
Signing of NDA. OVO team will share the technical documents for the integration. Merchant share public key, staging/sandbox. OVO team will share the staging credentials (sandbox) for development and integration purposes. After development in merchant side done, OVO team will conduct testing / UAT process and will do review for UAT result.	Signing Commercial Agreement. Merchant fill Merchant registration form. Merchant share public key, and IP to be whitelisted in production. OVO team will share the production credentials to merchant. Merchant can deploy the production credentials from OVO and Go Live.

Integration Process SLA

Integration Phase	SLA	PIC	Remarks
Create Staging Credentials	Up to 2 working days	OVO
API Development	TBD	Merchant
Devsite BI Test	TBD	Merchant
Functional Test	TBD	Merchant
UAT with OVO	1 working day / platform	OVO
Review UAT Result	Up to 2 working days	OVO
Create Production Credentials	Up to 6 working days	OVO	Can parallel create if administration & technical requirements done
Go Live Preparation	1 working day	OVO	Can parallel before go live, meeting with Operational team OVO & merchant
Deployment Production	TBD	Merchant
Go Live	TBD	Merchant
